Description:
This stainless steel metric cable gland inox connector is crafted from non-magnetic stainless steel INOX 304, 316 or 316L, it is characterized by its European-style dome top and wide universality. It has the main features of excellent craftsmanship, smooth surface polishing treatment, clear and orderly thread and long-lasting waterproof protection. It comes with a standard thread length of 15mm, and is also available to customize the thread length. It is easy-to-mount, and is often used to connect cable to terminal equipment (electrical control box) and provide a good strain relief to prevent the cable from pull-out and protect electrical or electronic components inside the equipment from ingress of dust, water, liquid, etc, it offers a good waterproof protection up to IP68.
About this item:
(1) Superior quality: it is made of stainless steel (304, 316 or 316L), durable and long-lasting, effectively resistant to UV, moisture, water, aging, oxidation, corrosion and common solvency, it boasts unparalleled protection for your cables, offering reliability and security that you can depend on.
(2) Strongly waterproof: IP68 waterproof protection is offered, each one consists of a locknut, an o-ring, a body, a sealing ring, a clamping claw and a sealing nut. The o-ring is made from black rubber, which can better protect your electrical equipment.
(3) Secure and reliable: it provides a secure and safe connection for your large cables, it comes with a o-ring, IP68 waterproof rating protects your projects from dust, water, and other contaminants.
(4) Easy installation: installation can be completed by one person, no special tools. Just need to insert the cable through the cable gland, then screw the sealing nut and lock nut, the cable will be tightly fixed, but no need to disassemble.
(5) Wide applications: whether you need waterproof cable to pass through for your home, office, or industrial project, our cable glands have got you covered, providing a versatile solution for your projects.
Information:
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Size: | M150x2 (clamping range: 110~125mm) |
| Material: | Metallic parts are made in 304, 316 or 316L grade stainless steel |
| Plastic insert is made in UL-polyamide 6, 94V-2 |
| Sealing parts are made in NBR, EPDM, Silicone or FKM |
| Surface: | Polishing threatment |
| Color: | Silver gray |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproof rating: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | 20mm long, but other lengths can be customized |
| Thread type: | According to the standard EN 60423 |
| Working temperature: | Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 50 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: | (1) 1 piece per bag. (2) special packaging can be customized as requested |
|
|

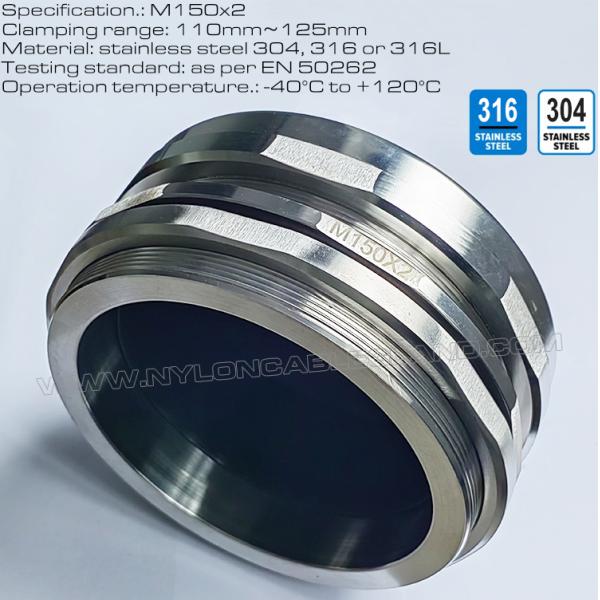

M150x2 Metric Cable Gland Stainless Steel 316, Cable Gland IP68 Stainless Steel 316L Waterproof Connector Inox 304 for 110-125mm Cables Images
|
